Wukong Dental Microscope allows users to easily adjust the focal length without changing the sitting position or opening and moving the lens. Easier operation to prevent prolonged strain of cervical and lumbar spine.

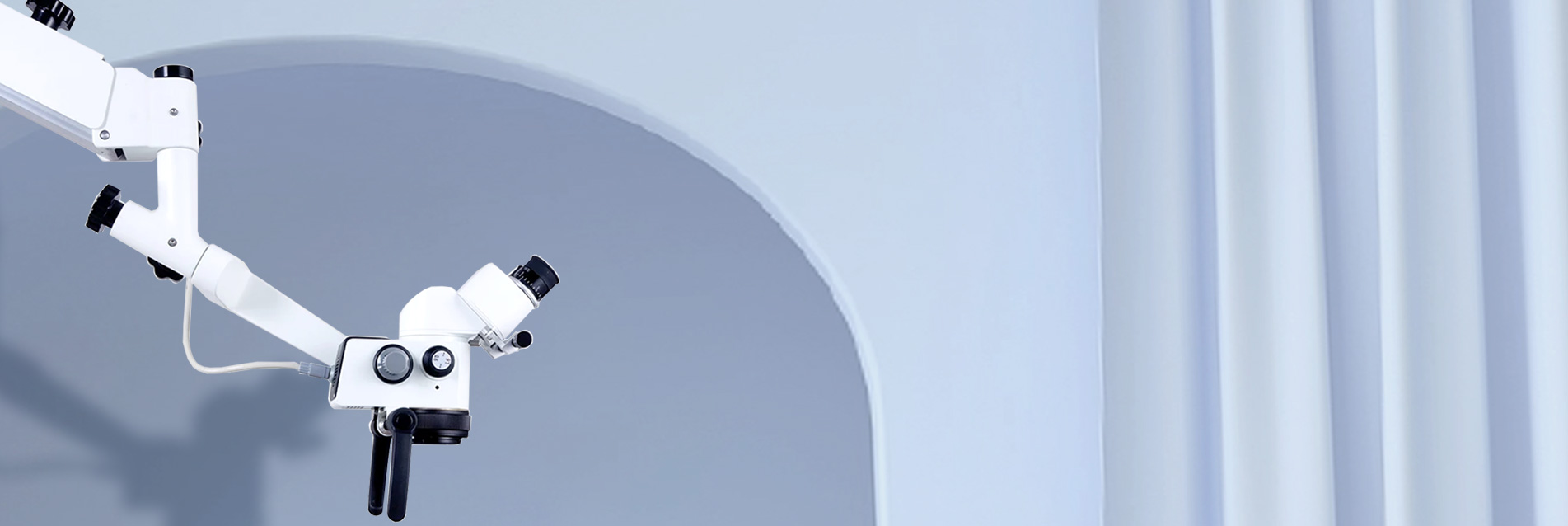

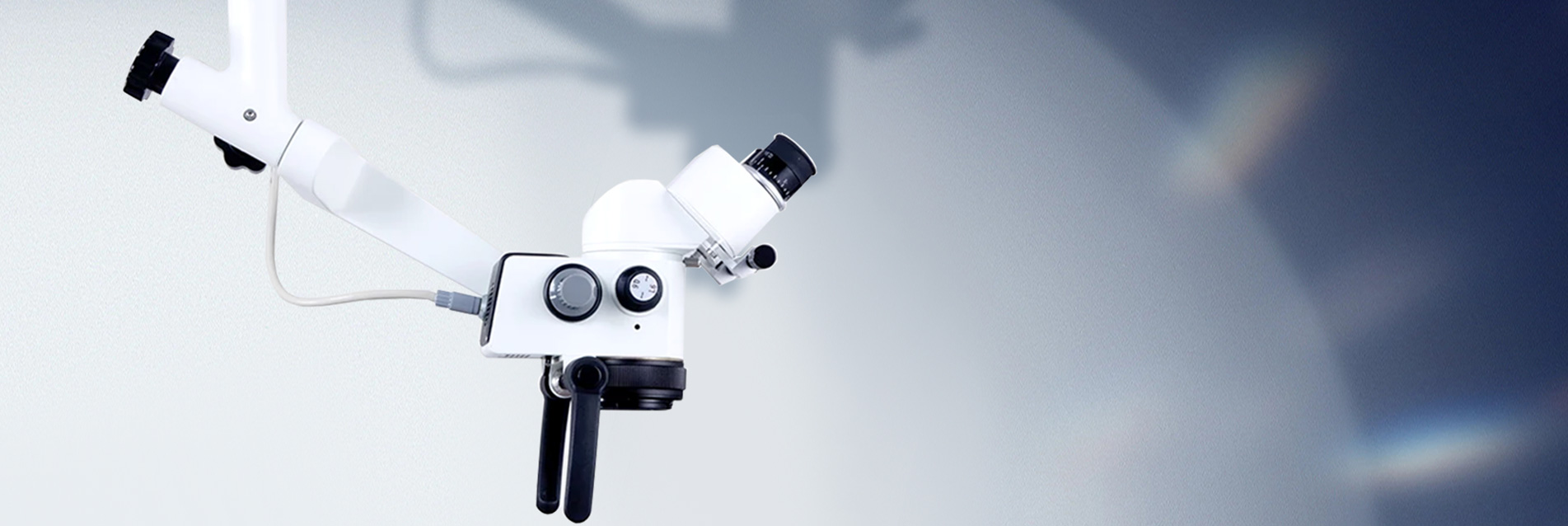

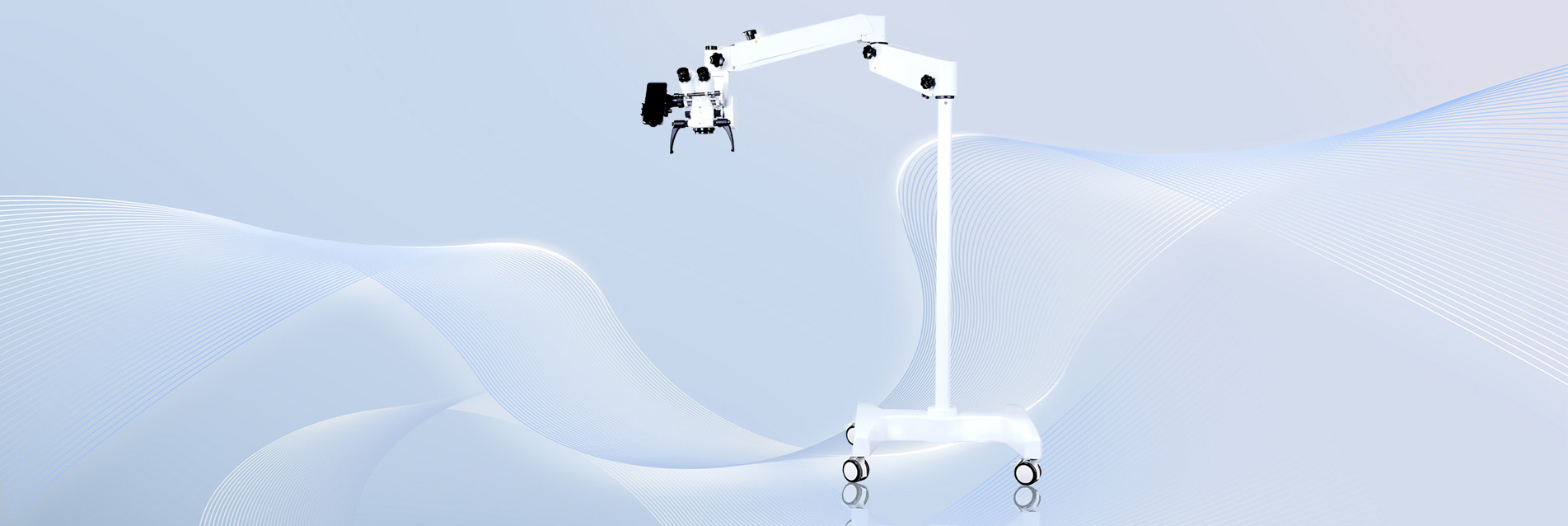

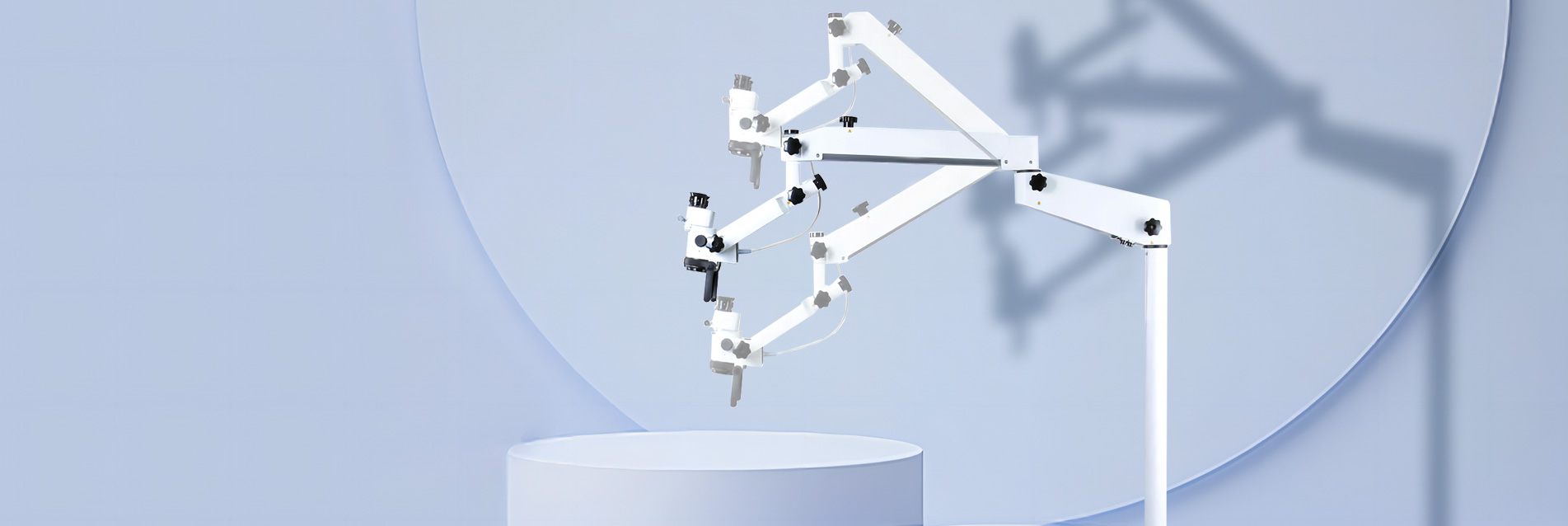

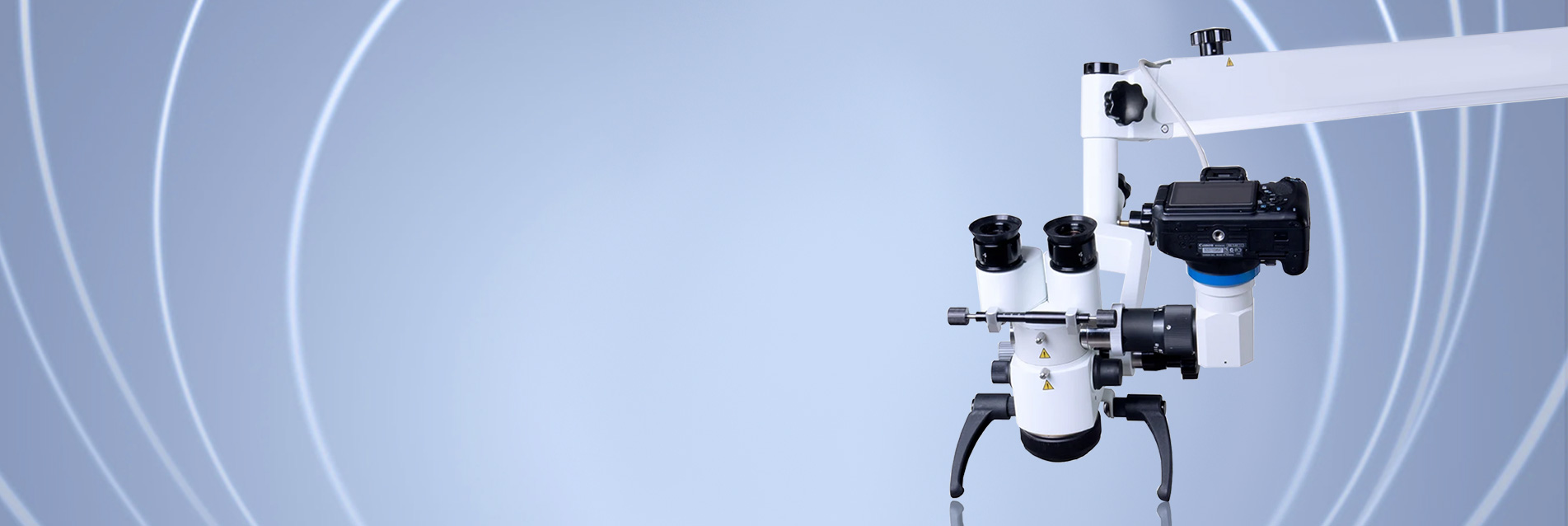

Dental Microscope
Convenient positioning, Angle adjustment, comfortable feel.
High resolution optical system with strong stereo sense and deep depth of field. LED cold light lighting, brightness continuous adjustable, manual drum turn times. The machine is small, flexible and convenient to move. It is suitable for the microsurgical operations in the Department of Stomatology Dental and the Department of ENT.
Looking for missing root canal
Removal of plasticizer from root canal
Dredge calcified root canal and the passage of root canal steps
Removal of broken instruments in root canal
Repair perforation
Micro apical surgery
Microsurgical repair
Microperiodontal
| Eyepieces magnification | 12.5x |
| pupil distance adjustable range | 55mm~75mm |
| diopter adjustment range | +6D ~ -6D. |
| Binocular tube | 0~200° |
| Magnification | |
| 5 steps magnification | 3.6x,5.4x,9x,14.4x,22.5x |
| field of view | 55.6mm,37.1mm,22.2mm,13.9mm,8.9mm |
| illumination | |
| LED cold light, strong light, longer lifetime, brightness adjustable infinitely, | |
| illumination diameter of light spot | Φ70mm |
| illumination intensity | ≥ 60000lux |
| field of view | Φ53mm，Φ32mm，Φ20mm |
| build-in small-spot, both blue and yellow light filter. | |
| Objectives | |
| F=180-300mm | |
| Rotating head for all direction | |
| operate by two handles | free and easy to operate in 0-360° |
| Maximum length of arm | 1100mm |
| Build in 4K CCD Camera system | |
